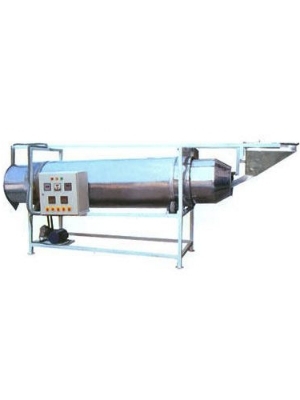

Rotary Roaster Machine

Name: Rotary Roaster Machine
Brand: AEI Engineering Works
Price: 230500 INR
Availability: InStock

Price 230500 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Rotary Roaster Machine Specification

Heating Method
12 kW Electric Heater

Phase
Three Phase

Machine Type
Rotary Roaster

Function Type
Roasting

Speed Mode
Fixed

Frequency
50 Hz

Features
Steel Drum, Insulated Jacket, Floor Stand

Power Source
Electric

Automation Grade
Semi-Automatic

Operating Temperature
Adjustable via Digital Controller

Noise Level
Low

Feeding System
Vibrating Hopper

Product Type
Rotary Roaster Machine

General Use
Food processing

Capacity
80 - 100 kg/hour

Weight (kg)
Approx. 350 kg

Product Shape
Cylindrical

Computerized
No

Voltage
440 V

Power
13 kW

Dimension (L*W*H)
14 ft x 3 ft x 7 ft

Color
Metallic / Silver

Maintenance
Low Requirement

Motor Power
1 HP

Sheet Thickness
18 Gauge

Insulation
Glass Wool Jacket

Portability
Stationary Unit

Temperature Controller
Digital Meter

Frame Stand Material
Mild Steel (MS)

Surface Finish
Polished Steel

Roasting System
Continuous

Hopper
Vibrator Equipped

Total Connected Load
13 kW

Non-Contact Material
SS 202 Glass Wool

Rotary Roaster Machine Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1 Piece Per Day

Delivery Time
7 Days

About Rotary Roaster Machine

Motor Power	1 HP
Drum Contact Material	SS 304
Non-Contact Material	SS 202 with Glass Wool
Frame Stand Material	Mild Steel (MS)
Sheet Thickness	18 Gauge
Roasting Capacity	80 - 100 kg/hour
Overall Dimensions	Length: 14 ft x Width: 3 ft x Height: 7 ft
Voltage	440 V
Power Supply	Three Phase
Hopper	With Vibrator
Temperature Controller	Digital Temperature Meter
Heating Source	12 kW Industrial Heater
Roasting System	Continuous Roasting System
Total Connected Load	13 kW

Superior Stainless Steel Construction

Utilizing SS 304 stainless steel for all product-contact components, this Rotary Roaster Machine delivers excellent durability and corrosion resistance, maintaining hygiene standards in food processing. The outer non-contact parts feature SS 202 with a glass wool jacket for effective insulation, helping maintain temperature consistency during operation while keeping the surface cool to touch.

Continuous Roasting Efficiency

Designed with a reliable rotary drum and a powerful vibrator-equipped hopper, the machine enables a smooth, uninterrupted production flow. Capable of processing 80-100 kg of raw seeds or grains per hour, its continuous roasting system is ideal for high-volume food manufacturing environments. The digital temperature controller offers precise, consistent heat adjustment throughout operation.

User-Friendly Operation and Maintenance

This semi-automatic rotary roaster is simple to operate, with an intuitive digital temperature meter and a fixed-speed mode, ensuring low operator intervention and ease of use. The insulated design reduces heat loss and noise, making it both energy efficient and comfortable to work around. Regular maintenance is minimal, keeping downtime to a minimum for busy processing facilities.

FAQ's of Rotary Roaster Machine:

Q: How does the Rotary Roaster Machine operate for seed and grain processing?

A: The machine uses a continuously rotating SS 304 drum and a vibrating hopper for smooth, even feeding and roasting of seeds or grains. Its 12 kW electric heater ensures uniform heat distribution, while the digital temperature controller allows users to adjust heat levels for different products.

Q: What is the capacity and ideal application of the Rotary Roaster Machine?

A: With a throughput of 80-100 kg per hour, the machine is suitable for food processing plants requiring bulk roasting of various seeds and grains. It is designed for continuous, industrial-scale operations to increase production efficiency.

Q: When should the temperature adjustments be made, and how is this achieved?

A: Temperature can be adjusted at any time during operation using the digital meter controller. This flexibility allows operators to adapt roasting conditions for different types of raw materials or desired degrees of roast.

Q: Where should the Rotary Roaster Machine be installed?

A: The machine is intended for stationary, floor-mounted installation in industrial facilities. Its 14 ft x 3 ft x 7 ft dimensions require ample floor space, and it needs a stable, three-phase 440V, 50 Hz power supply.

Q: What maintenance is required to keep the machine running smoothly?

A: Regular cleaning of the drum and hopper is advised, along with periodic checks of the motor and temperature controls. Thanks to its robust construction and design, the machine is low-maintenance, minimizing service interruptions.

Q: How does the vibrating hopper benefit the roasting process?

A: The vibrating hopper ensures a consistent and controlled feed of raw material into the drum, preventing clogging and promoting uniform roasting throughout each batch.

Q: What advantages does the insulated glass wool jacket provide?

A: The glass wool insulation maintains internal temperatures while reducing heat loss and minimizing external surface heat, improving energy efficiency and providing a safer working environment.
